Más de la mitad de todos los usuarios de sistemas de plegado sin conexión desean poder retirarse en línea a medio plazo. Hasta ahora esto ha significado una costosa reconstrucción del sistema de plegado.

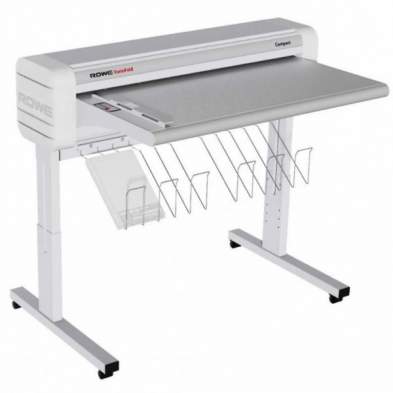

Con VarioFold Compact puede ahorrarse esto, gracias a su construcción modular. Esta es la primera máquina de plegado del mundo que se puede extender de fuera de línea a en línea con un gasto mínimo, incluso después de que ya se haya puesto en funcionamiento. Esto le garantiza la máxima seguridad para su inversión.

ROWE incluso va un paso más allá: ya sea que el ajuste de altura sea fácil para la espalda, el plegado silencioso, el plegado sin fin patentado o los programas de plegado específicos del usuario: el VarioFold Compact se puede extender en cualquier momento. Esto significa que es la primera máquina de plegado del mundo que crece con su usuario. Una verdadera innovación 'Hecho en Alemania' - Hecho por ROWE.

Experimenta la fascinación de ROWE. Simplemente haga una cita con el distribuidor autorizado en su área.

Features Description
Modular construction Worldwide first completely modular folding system, can be upgraded on-site to an online solution at any time
High-quality aluminum spaceframe construction Extremely stable chassis in aluminum spaceframe construction, extremely torsion resistant for maximum folding precision and durability
Quiet folding Optimal for integration into office environments thanks to state-of-the-art step motor technology
Emission: not measurable in energy saving mode, in operating mode 50 db (A) in acc. with ISO 7779
Fully automatic clearance of paper Easy clearance of paper from the folding space at the push of a button
Media width 210 mm - 960 mm (8.27" - 37.8")
Media types / weights Normal and inkjet paper, 60 - 120 g/m² (paper weight: 16-32 lb)
Fan Folding Up to 2500 mm (98.43")
Up to 4000 mm (157.48"): see ROWE FOLD APP SE
Up to 30 m (98.43 ft) or unlimited: see Endless Folding Kit 30/UNLIMITED (patented)
Cross folding Up to 1500 mm ( 59.06") for DIN folding
Up to 2500 mm (98.43") for DIN folding: see ROWE FOLD APP SE
Standard folding programs Fan folding: 190 mm/210 mm (7.48"/8.27"), 185 mm/210 mm, (7.28"/8.27"), 180 mm/210 mm ( 7.09"/8.27"), 198 mm (7.8"), 210 mm (8.27") and 210 mm (8.27") packet folding
Cross folding: 297 mm (11.69") and 305 mm (12.01")
Special folding programs Packet width fan folding:180 mm - 305 mm (7.09" - 12.01"), freely adjustable in steps of 1 mm (0.04"): see ROWE FOLD APP SE
Packet width fan folding:90 mm - 420 mm (3.54" - 16.54"), freely adjustable in steps of 1 mm (0.04"): see ROWE FOLD APP PRO
Packet width cross folding:210 mm - 305 mm (8.27" - 12.01"), freely adjustable in steps of 1 mm (0.04"): see ROWE FOLD APP SE
Packet width cross folding:180 mm - 420 mm (7.09" - 16.54"), freely adjustable in steps of 1 mm (0.04"): see ROWE FOLD APP PRO
Filing margin 0 mm (0"), 20 mm (0.79"), 25 mm (0.98") and 30 mm (1.18")
0 mm - 35 mm (0" - 1.38"), freely adjustable in steps of 1 mm (0.04"): see ROWE FOLD APP SE
ROWE FOLD APP LT2 App for easy counter reading: folded documents, foldings and linear feet. Includes 12 pre-installed standard folding programs
USB interface For ROWE FOLD APP LT/SE/PRO, including USB cable
Folding standards DIN 824 A, B, C (A4, A3, A2, A1, A0), AFNOR similar (A4, A3, A2, A1, A0), ANSI (A, B, C, D, E), ARCH (A, B, C, D, E), Ericsson (A4, A3, A2, A1, A0), French
Folding speed 20 m/min (65.62 ft/min) in offline operation, up to 20 m/min (65.62 ft/min) in online operation with multispeed and short gap technology for automatic adjustment of folding speed to the output system
Custom Speed 2 Reduction of folding speed in offline operation for special requirements. Included in the ROWE FOLD APP LT
Power connection 100 - 240 V, 50/60 Hz
Power consumption Energy saving mode: < 0.8 Watt, operating mode: 58 Watt
Dimension and Weight Dimension and weight are dependent on your individual configuration. All details can be found in the configurator at www.rowe.one/configurator
Interfaces RS 232 serial/CAN/USB
Certificates RoHS, CE, UL, cUL, CB, FCC Part 15 Class B, EAC
